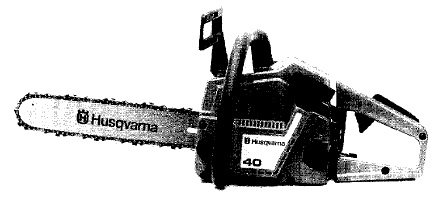

Husqvarna 40 Chainsaw



Husqvarna 40 Chainsaw

Husqvarna 40 chainsaw specs

First production year: 1978
Last production year: 1998
Displacement: 40cc
Cylinder diameter: 40mm
RPM: 12,500
Fuel mix ratio: 50:1

Husqvarna 40 chainsaw illustrated parts list


Husqvarna 40 Chainsaw 01 - 1978

Husqvarna 40 Chainsaw 12 - 1984

Husqvarna 40 Chainsaw 05 - 1985

Husqvarna 40 Chainsaw 09 - 1985

Husqvarna 40 Chainsaw 01 - 1986

Husqvarna 40 Chainsaw 12 - 1986

Husqvarna 40 and 45 Chainsaws 01 - 1987

Husqvarna 40 and 45 Chainsaws 02 - 1988

Husqvarna 40 and 45 Chainsaws 05 - 1988

Husqvarna 40 and 45 Chainsaws 06 - 1989

Husqvarna 40 Chainsaw 06 - 1990

Husqvarna 40 Chainsaw 06 - 1991

Husqvarna 40 and 45 Chainsaws 06 - 1995

Husqvarna 40, 45, 49, 45 EPA and 49 EPA Chainsaws 05 - 1998


Popular parts


503 41 32-01 Air filter

503 22 00-01 Bar nuts

506 01 49-01 Bucking spikes

502 10 03-03 Carburetor (Walbro WT-17 C)

503 28 31-01 Carburetor (Zama C1Q-EL1)

Walbro K20-WAT carburetor repair kit (for WT-17 C)

Walbro D10-WAT carburetor diaphragm and gasket kit (for WT-17 C)

Zama RB-45 carburetor repair kit (for C1Q-EL1)

Zama GND-33 carburetor diaphragm and gasket kit (for C1Q-EL1)

503 17 31-01 Clutch

505 30 23-55 Clutch bearing

503 15 98-02 Clutch Drum (.325" pitch x 7 T.)

506 01 06-04 Cylinder Kit (40mm)

506 02 75-02 Fuel cap

503 44 32-01 / 503 40 20-01 Fuel filter

504 30 00-40 Fuel line

506 02 72-02 Ignition coil (older models)

503 58 05-01 Ignition coil  (later models)

530 23 51-08 Champion RCJ7Y Spark plug

501 76 31-01 Starter spring
